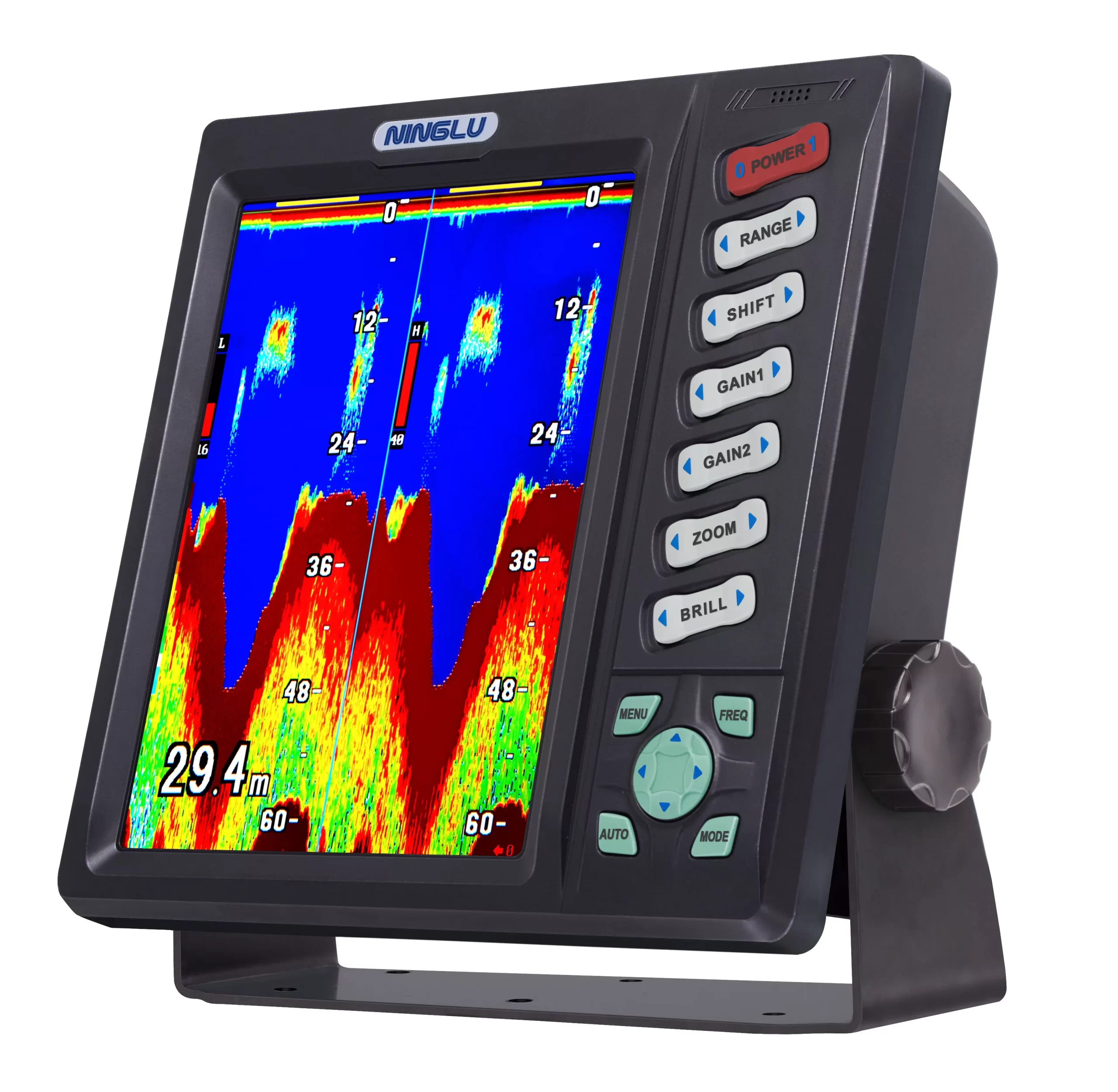

The Ninglu DF series presents a formidable solution for commercial sea fishing endeavors, providing unmatched performance and reliability. Engineered with cutting-edge digital signal processing technology, this 10-inch fish finder eliminates the need for IF transformers, ensuring precise and efficient signal reception. Its digital signal conditioning guarantees stability across temperature variations, delivering consistent results in any fishing environment.
With power options ranging from 600W to 3000W, the DF series accommodates the diverse needs of commercial fishing operations. Whether targeting shallow or deep waters, its customizable frequency settings, including DF612, DF1011, DF2022, DF5068, DF5088, and DF5099, ensure optimal performance under varying conditions.
Equipped with a vibrant 10.4-inch TFT color LCD display, featuring a resolution of 640×480 pixels, the DF series offers crystal-clear visuals of underwater activity. Users can customize echo colors with 16 levels and 6 configuration options, providing enhanced visibility of fish schools and seabed structures.
Navigating through the vast expanse of the sea is made effortless with the DF series’ comprehensive range scope, spanning from 5 to 2000 meters. Its dynamic shift range, extending from 5 to 500 meters, enables precise targeting and tracking of fish movements.
Safety and reliability are paramount in maritime operations, and the Ninglu DF series upholds these standards. It features a robust construction compliant with IP23 waterproofing standards for the operating unit and IP66 for the transducer, ensuring durability in challenging marine environments.
Whether in rough seas or calm waters, the Ninglu DF series 10-inch fish finder stands as a beacon of innovation and efficiency, empowering commercial fishermen with the tools they need to succeed.
Features
Digital signal processing without IF transformer and advanced technology.
Digital signal reception with low background noise and high sensitivity.
Digital signal conditioning, no change with temperature and high stability.
Video extension, transfer a large screen display and HD display.
Custom-order NMEA signal interface and serve as customer service.
| Performance | Specification |
|---|---|
| Dimension | 264(H) x 270(W) x 93(D) mm |
| Power | DC24V (19~36V); Fish finder will automatically shut down when overhigh voltage |
| Consumption | <24W |
| Frequency | DF612 50/200kHz 600/600W; DF1011 50kHz 1500W; DF2022 50/200kHz 700/700W; DF5068 50/200kHz 1800/600W; DF5088 50/200kHz 2000/1000W; DF5099 50kHz 2500W |
| LCD | 10.4 inch TFT color LCD, 640X480 pixels |
| Background | Grey, Blue, D-Blue, Black |
| Echo colors | 16 echo levels and 6 kinds of color configuration |
| Time scale | 30s, continuously move left |
| Range scope | 5 10 20 30 40 50 60 80 100 120 150 180 200 250 300 400 500 600 800 1000 1500 2000m |
| Shift range | 5 ～ 500 m |
| Alarm | Shallow alarm (prior), fish alarm |
| Alarm mode | Buzzing, letters glittering on screen |
| Environment | |
| Working temperature | -10 ～ 40℃, complying to IEC60945 |
| Working humidity | 10 ～ 90% relative humidity |
| Operating unit waterproofing | IP23, complying to IEC60529 |
| Transducer waterproofing | IP66 |
